Lightmoor Construction Detailing

Click on the image to enlarge.

This module built upon the Lightmoor project and focused on the construction detailing of a small area within the larger masterplan. The area chosen was 140 x 80 meters. Our task was to redesign the space and then create construction drawings in Autocad.

(Click on the arrow to see the masterplan)

Original Zoom

Modified Design

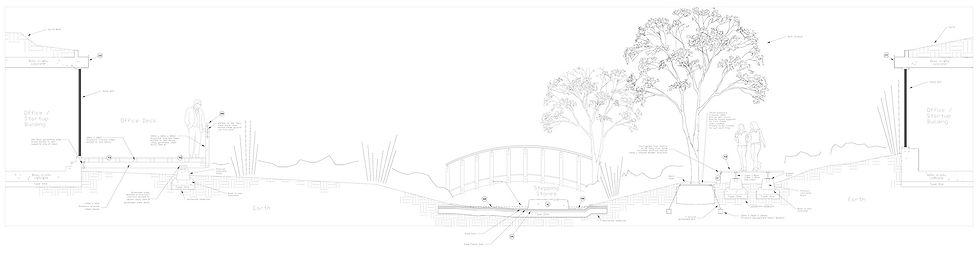

This was the first time properly using Autocad and I think, from my perspective at least, it went rather well. It was also the first time selecting and specifying materials, junctions, edging and planting; the planting plan was rushed and is not shown here. The cross section below can be seen in the centre of the master plan labeled as CS01.
